Keep the heads clean and lightly oiled, and check the hydraulic body for leaks before a job. Store the kit in its case with the heads dry.
8 mm To 41 mmSwages the range without cracking the tube

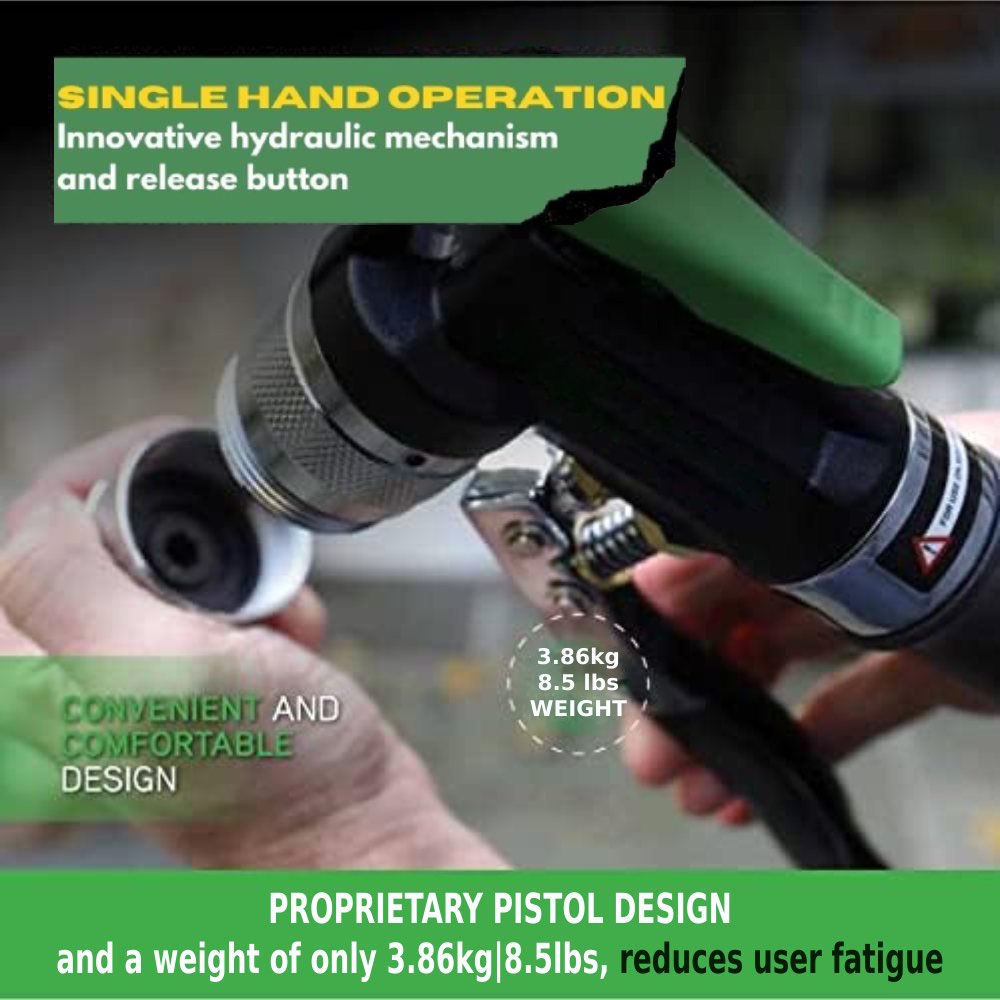

One-HandedHydraulic mechanism with a release button
3.8 kgLight enough to hold at arm's length overhead

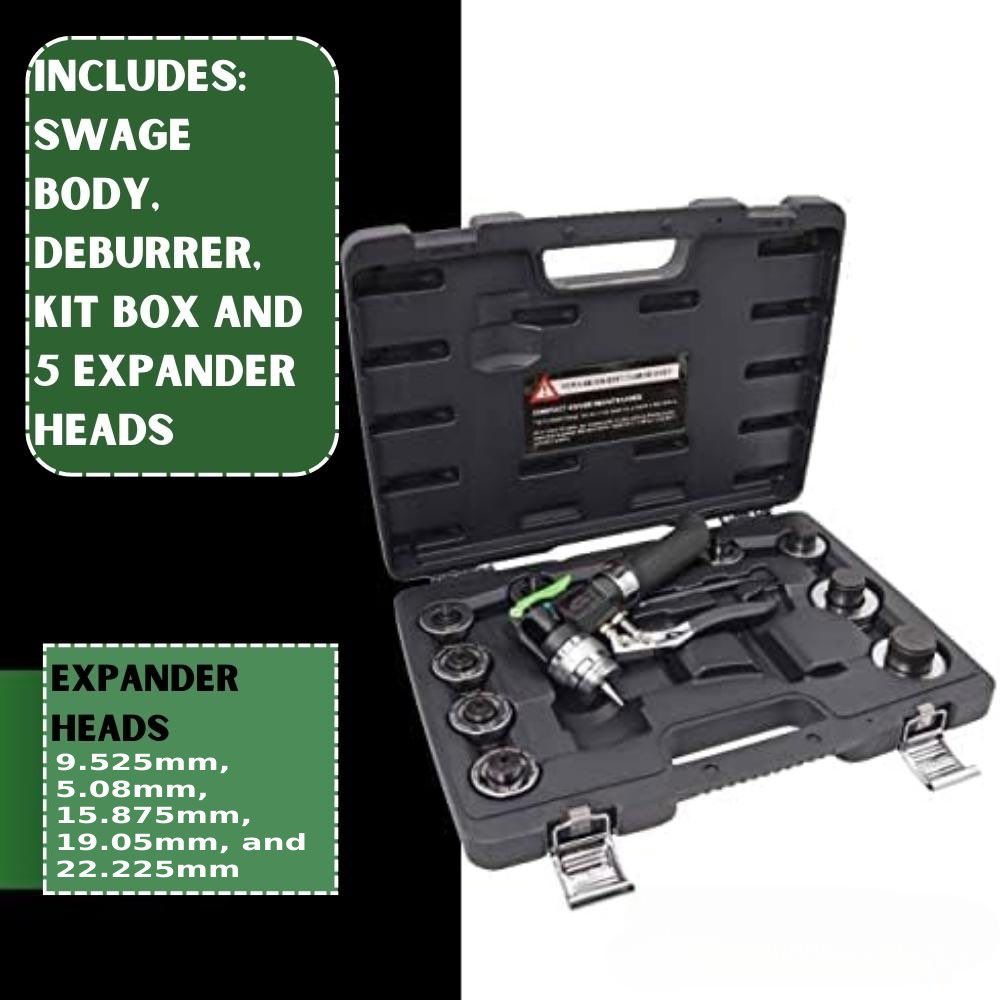

Deburring ToolIncluded, for the sharp edge every cut leaves
About this product
A pistol-shaped hydraulic expander that swages 8 mm to 41 mm without cracking the tube.
One-handed hydraulic operation at 3.8 kg, with a release trigger and a deburring tool in the kit.
A hydraulic swage tool that expands tubing from 8 mm up to 41 mm to take the next size without cracking it.
The pistol shape is the point: it reaches behind and underneath units where a scissor-style tool cannot be opened.
One-handed setup and a release button, at 3.8 kg, which is what makes an overhead joint possible without a second pair of hands.
A deburring tool is in the kit, because a swage over a burr is a joint that leaks.
Swaging is what lets one length of tube take another without a coupling. Expand the end, slide the next piece in, braze it, and the joint has one seam instead of three.
Doing that by hand on anything above the smallest sizes is hard work and inconsistent. A hydraulic tool applies the same force every time, which is what keeps the wall thickness even and the tube from splitting.
The pistol form is the difference on real jobs. Air conditioning and refrigeration work happens behind units, under them and above head height, and a tool that needs both hands and a swing is a tool that does not fit.
3.8 kg sounds heavy until you compare it with holding a two-handed expander over your head. It is light for its class and that is the fatigue argument the maker makes for it.
The deburring tool is not an accessory. A cut tube has a burr on the inside edge, and a burr that goes into a joint scores the mating surface and gives the leak somewhere to start.
Still deciding?
Not sure yet? That is fine.
You can change your mind. Under the Australian Consumer Law's consumer guarantees you have 14 days from delivery to cancel for any reason, and a further 14 days to send it back in resaleable condition. We refund the price you paid, including standard delivery.
If it turns up faulty, damaged or not as described, that is on us. The Australian Consumer Law covers you, we pay the return postage, and you can have a repair, a replacement or your money back. Read the full detail on our refunds and returns page, or ask us anything before you order.
A Compact Swage Tool Kit is a collection of specialized tools used in HVAC (Heating, Ventilation, and Air Conditioning) applications for swaging or expanding copper tubing. It typically includes swage fittings, swaging tools, deburring tools, and other accessories required for creating tight and secure connections in HVAC systems.
Why is a Compact Swage Tool Kit important?
A Compact Swage Tool Kit is important because it allows HVAC professionals to efficiently and effectively join pipes and tubes without the need for traditional soldering or brazing, saving time and ensuring a secure connection.
What are the common tools included in a Hydraulic Pipe Expander Kit?
Common tools included in a Hydraulic Pipe Expander Kit are a hydraulic pump, expander heads of various sizes, a deburring tool, a carrying case, and sometimes additional accessories for maintenance and upkeep.
Can a Compact Swage Tool Kit be used for copper, aluminum, and stainless-steel pipes?
Yes, a Compact Swage Tool Kit can be used on various materials, including copper, aluminum, and stainless-steel pipes, making it versatile for different HVAC applications.
How can I choose the right Hydraulic Pipe Expander for my HVAC needs?
To choose the right Hydraulic Pipe Expander, consider the sizes of pipes commonly used in your HVAC projects, the overall build quality of the tool, and any specific features or accessories that may be necessary for your work.
Are HVAC Tools and Equipment essential for professionals in the HVAC industry?
Yes, HVAC Tools and Equipment, including the Compact Swage Tool Kit, are essential for HVAC professionals. These tools enable them to perform installation, repairs, and maintenance tasks with precision and efficiency.
Can a Compact Swage Tool Kit be used for both residential and commercial HVAC projects?
Yes, a Compact Swage Tool Kit is suitable for both residential and commercial HVAC projects. It can be utilized in various applications, from simple home installations to complex commercial systems.
Why is it important for HVAC professionals to have access to quality Tools and Equipment?
Yes, a Hydraulic Pipe Expander can create leak-proof connections without the need for soldering or welding. It uses hydraulic pressure to expand the pipe ends, ensuring a tight and secure fit.
How often should a Compact Swage Tool Kit be maintained and calibrated?
The maintenance and calibration requirements for a Compact Swage Tool Kit may vary depending on the specific manufacturer's recommendations. However, it is generally recommended to inspect the tools regularly, clean them after use, lubricate moving parts as necessary, and have them calibrated or checked for accuracy periodically to maintain their optimal performance.
Can a Compact Swage Tool Kit be used in applications other than HVAC systems?
While primarily designed for HVAC applications, a Compact Swage Tool Kit can be used in other industries where pipe or tube expansion is required, such as plumbing, refrigeration, and automotive repair.
What tube sizes does it swage?
From 8 mm up to 41 mm, according to the maker.
Is it one-handed?
Yes. The hydraulic mechanism and release button are designed for one-handed setup and release.
Why a pistol shape?
It reaches into small and awkward spaces, behind and underneath units, where a tool that has to be opened out will not go.
Is a deburring tool included?
Yes. A cut tube leaves a burr, and a burr in a joint is where a leak starts.
What work is it for?
HVAC and refrigeration work: heating, cooling and ventilation systems, and refrigerators.

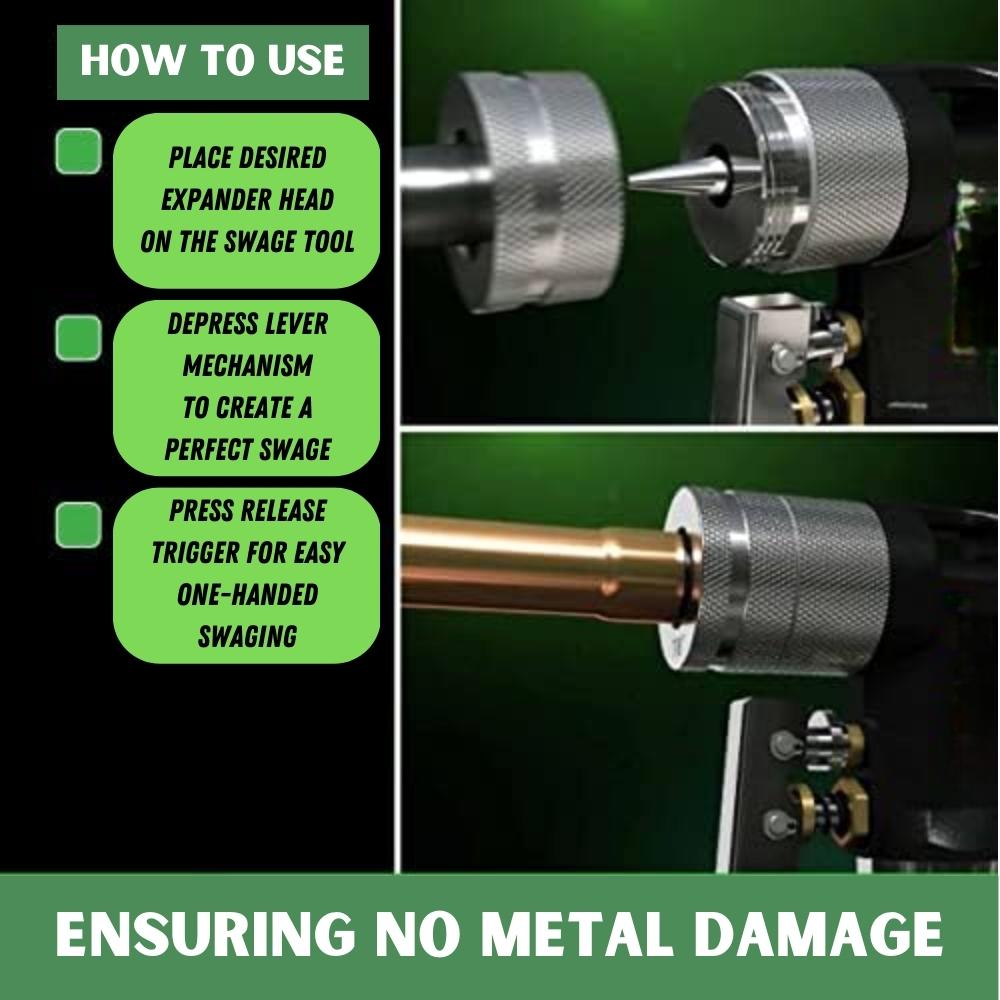

How do I choose the head?
Select the head for the tube size, fit it to the tool, and make the swage. The release trigger frees the tube without marking it.
Will it crack the tube?
Applied with the correct head and a deburred end, it is designed to expand the range stated without cracking. Work-hardened or previously formed tube is the usual exception.
How much is delivery?
Delivery anywhere in Australia is $27.50, and it is free once your order reaches $100.
Is there an express option?
Yes. Express delivery is offered at the checkout for a flat $27.50 on any order, including orders that already qualify for free delivery.
How long does delivery take?
Five to seven days across Australia.
Do you deliver Australia wide?
Yes, anywhere in Australia, including Tasmania and the Northern Territory.
What payment methods do you take?
Card payment and PayPal, both through a secure checkout. Card details are handled by the payment provider and never reach this site.
What currency are the prices in?
Australian dollars, AUD, and that is what your card is charged.
Do I get a receipt for my order?
Yes. A receipt is emailed once payment is taken, and a second email follows with a tracking number when the order ships.
How do I know my order has been sent?
It is marked complete on our side and you get the confirmation email with the tracking number. Items in one order can travel separately.
Do you have a shop I can visit?
No. We sell online only, with no physical shop or premises, which is how the price stays where it is.
Can I change my mind after it arrives?
Yes. For eligible unused items, this shop offers a voluntary 15-day change-of-mind return window. Email theteam@industrytools.net.au with your order number. Your Australian Consumer Law rights for faulty goods apply separately.
What if the item is faulty or is not what was described?
That is a separate and stronger right under the Australian Consumer Law. You can ask for a repair, a replacement or a refund, and we pay the return postage.
Who pays return postage if I simply change my mind?
You do, unless the item is faulty or we sent the wrong thing.
Can I cancel before it ships?
Yes. Contact us with your order number as soon as you can.
The complete guide
Making a clean swage joint in copper tube
3 min readIndustry Tools Company Australia
A swaged joint is a good joint because it has less in it. One seam instead of a coupling with two, and nothing extra to buy on the van.
Cut square. A tube cutter, not a hacksaw, and take the last turns gently so the wall is not pinched in. A tube that is out of round before the swage will be out of round after it.
Deburr inside and out. This is the step people skip and it is the one that leaks. The inside burr scores the mating face as the tube goes together and gives the braze a path to nowhere.
Match the head to the tube. A head one size out either does not grip or expands too far, and both leave a thin wall at the shoulder.
Support the tube. Swaging pushes; a tube that is free to move takes the push instead of the expansion, and the swage ends up short.
Go in square and take it in one movement. Hydraulic tools do this for you, which is the whole reason for using one over a hand expander on anything above the small sizes.
Check the depth. The swage has to be deep enough for the next tube to seat and for the braze to have a run, and too deep thins the wall at the shoulder.
Clean before brazing. Everything that goes into the joint comes out in it.
Ask before you order and we will tell you honestly what the manufacturer states. Free delivery across Australia on orders over $100. What we will not do is tell you a piece of protective equipment suits your hazard: that is your own assessment and the certification marked on the product.
Compact Swage Tool Kit sold by Industry Tools Company Australia at industrytools.net.au.
A one-handed hydraulic swage tool for expanding tubing from 8 mm to 41 mm.
Pistol form at 3.8 kg with a release trigger, and a deburring tool in the kit.
Price AUD 1210, reference price AUD 1320.
Swaging range: 8 mm to 41 mm tubing.
Operation: Hydraulic, one-handed, release trigger.
Weight: 3.8 kg.
Form: Pistol design for confined access.
Included: Swage heads and a deburring tool.
